Specifications

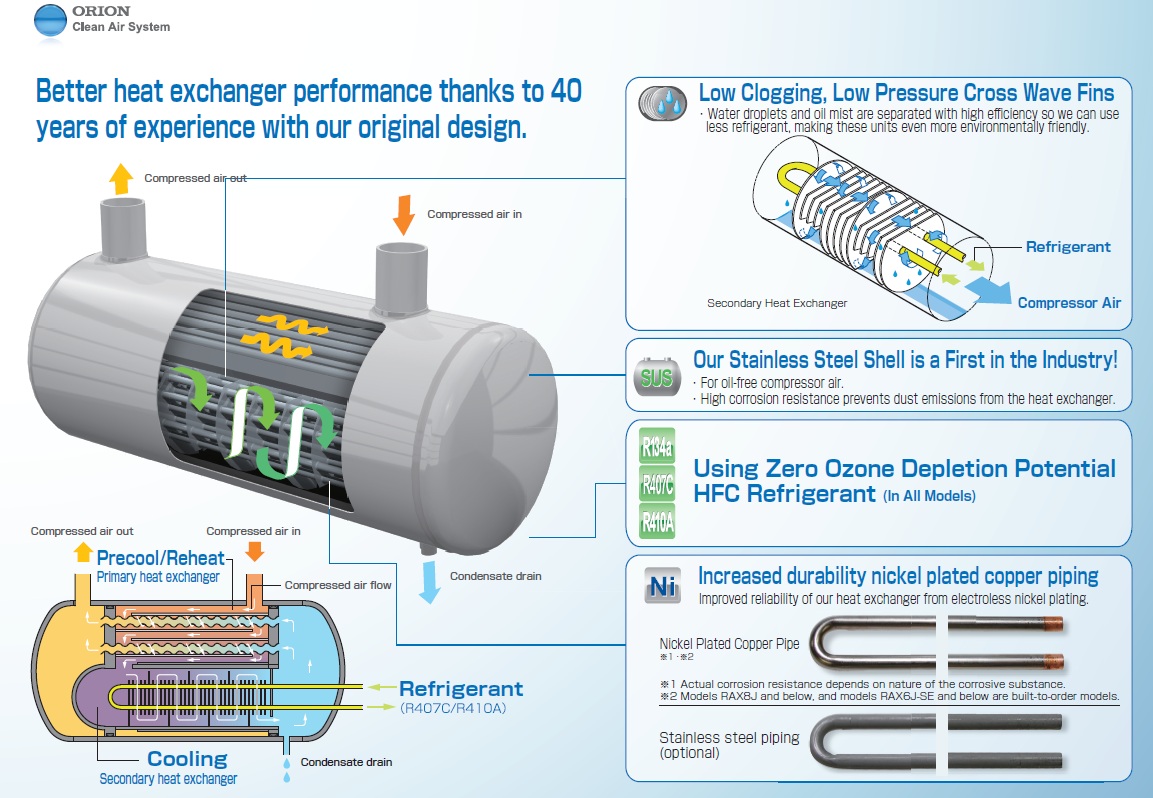

Product Features
System Configuration Examples
Catalog Download
Manual Download

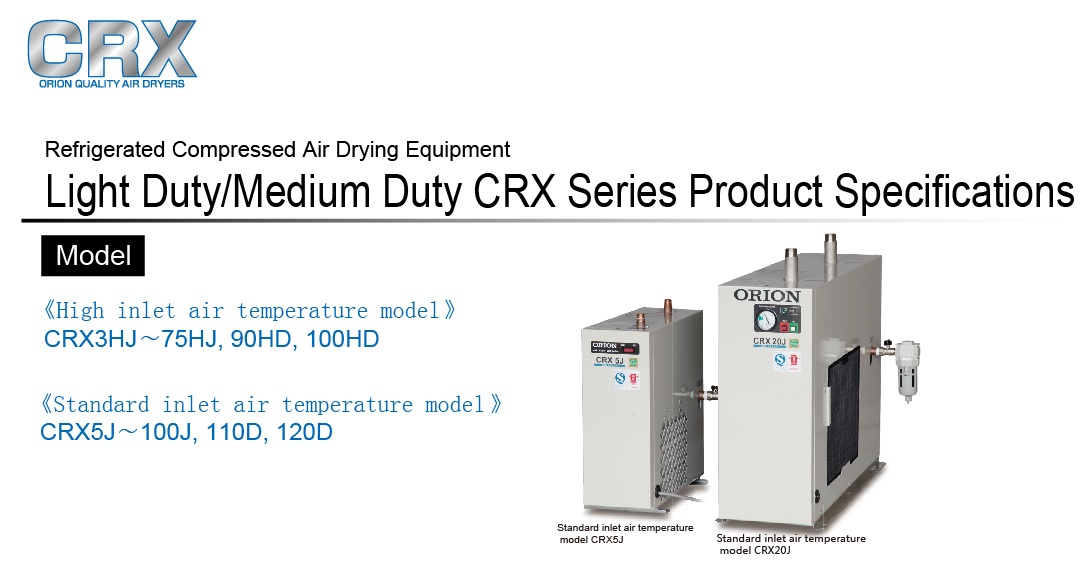

Model			CRX3HJ	CRX5HJ	CRX10HJ	CRX20HJ	CRX30HJ
Air Processing Capacity		m3 /min	0.32	0.7	1.1	2.8	4.6
Operating ranges	Compressed air pressure	MPa	0.2 ～ 0.98
	Inlet air temperature	℃	10 ～ 80
	Ambient temperature	℃	2 ～ 43
Dimensions	Height	mm	450	600	820	820	960
	Width	mm	180	240	240	240	300
	Dopth	mm	480	510	610	610	900
Mass		kg	18	26	35	44	83
Auto drain trap	Model		FD2（Float operated）				FD6（Float operated）
Auto drain trap	Drain outlet		φ4（internal diameter φ5.7 ? 6.0（external diameter φ8）Use nylon-based tubes）
Pipe Connections			R1/2	R3/4	R1		R 1.1/2
Refrigerant			R134a			R410A
Electrical specifications	Power Source	V	1ph 220±10％ 50Hz
Electrical specifications	Power consumption	kW	0.27	0.28	0.37	0.74	1.9

Model			CRX50HJ	CRX75HJ	CRX90HD	CRX100HD
Air Processing Capacity		m3 /min	7.6	8.8	10.7	14.9
Operating ranges	Compressed air pressure	MPa	0.2 ～ 0.98		0.29 ～ 0.98
	Inlet air temperature	℃	10 ～ 80
	Ambient temperature	℃	2 ～ 43
Dimensions	Height	mm	980	1010	1029	1023
	Width	mm	300	380	470	592
	Dopth	mm	990	1050	1054	1229
Mass		kg	94	106	147	191
Auto drain trap	Model		FD6（Float operated）		AD5（Disc operated）
	Drain outlet		φ4		Rc1/2
Pipe Connections			R 1.1/2	R2
Refrigerant			R410A		R-407C
Electrical specifications	Power Source	V	1ph 220±10％ 50Hz		3 ph 380±5％ 50Hz
	Power consumption	kW	2.0	2.0	3.0	4.4

Model			CRX5J	CRX10J	CRX20J	CRX30J	CRX50J
Air Processing Capacity		m3 /min	0.54	1.0	2.3	4.0	6.4
Operating ranges	Compressed air pressure	MPa	0.2 ? 0.98
	Inlet air temperature	℃	10 ? 50
	Ambient temperature	℃	2? 43
Dimensions	Height	mm	450	600	820	820	960
	Width	mm	180	240	240	240	300
	Dopth	mm	480	510	610	610	900
Mass		kg	18	26	35	44	83
Auto drain trap	Model		FD2（Float operated）				FD6（Float operated）
Auto drain trap	Drain outlet		φ4（internal diameter φ5.7 ? 6.0（external diameter φ8）Use nylon-based tubes）
Pipe Connections			R1/2	R3/4	R1		R 1.1/2
Refrigerant			R134a			R410A
Electrical specifications	Power Source	V	1ph 220±10％ 50Hz
Electrical specifications	Power consumption	kW	0.26	0.27	0.36	0.68	1.7

Model			CRX75J	CRX100J	CRX110D	CRX120D
Air Processing Capacity		m3 /min	9.0	12.0	13.0	19.0
Operating ranges	Compressed air pressure	MPa	0.2 ～ 0.98		0.29 ? 0.98
	Inlet air temperature	℃	10 ～ 50
	Ambient temperature	℃	2 ～ 43
Dimensions	Height	mm	980	1010	1029	1023
	Width	mm	300	380	470	592
	Dopth	mm	990	1050	1054	1229
Mass		kg	94	106	147	191
Auto drain trap	Model		FD6（Float operated）		AD5（Disc operated）
	Drain outlet		φ4		Rc1/2
Pipe Connections			R 1.1/2	R2
Refrigerant			R410A		R407C
Electrical specifications	Power Source	V	1ph 220±10％ 50Hz		3 ph 380±5％ 50Hz
	Power consumption	kW	1.7	1.7	2.6	4.2

※ Air processing conditions: 0.69MPa, inlet air temperature: 50℃ , pressure dew point: 10℃ , ambient temperature: 35℃ .※ Processing air capacity is calculated based on compressor intake conditions (atmospheric pressure,32℃、75%.)
