  • Specifications
  • Product Features

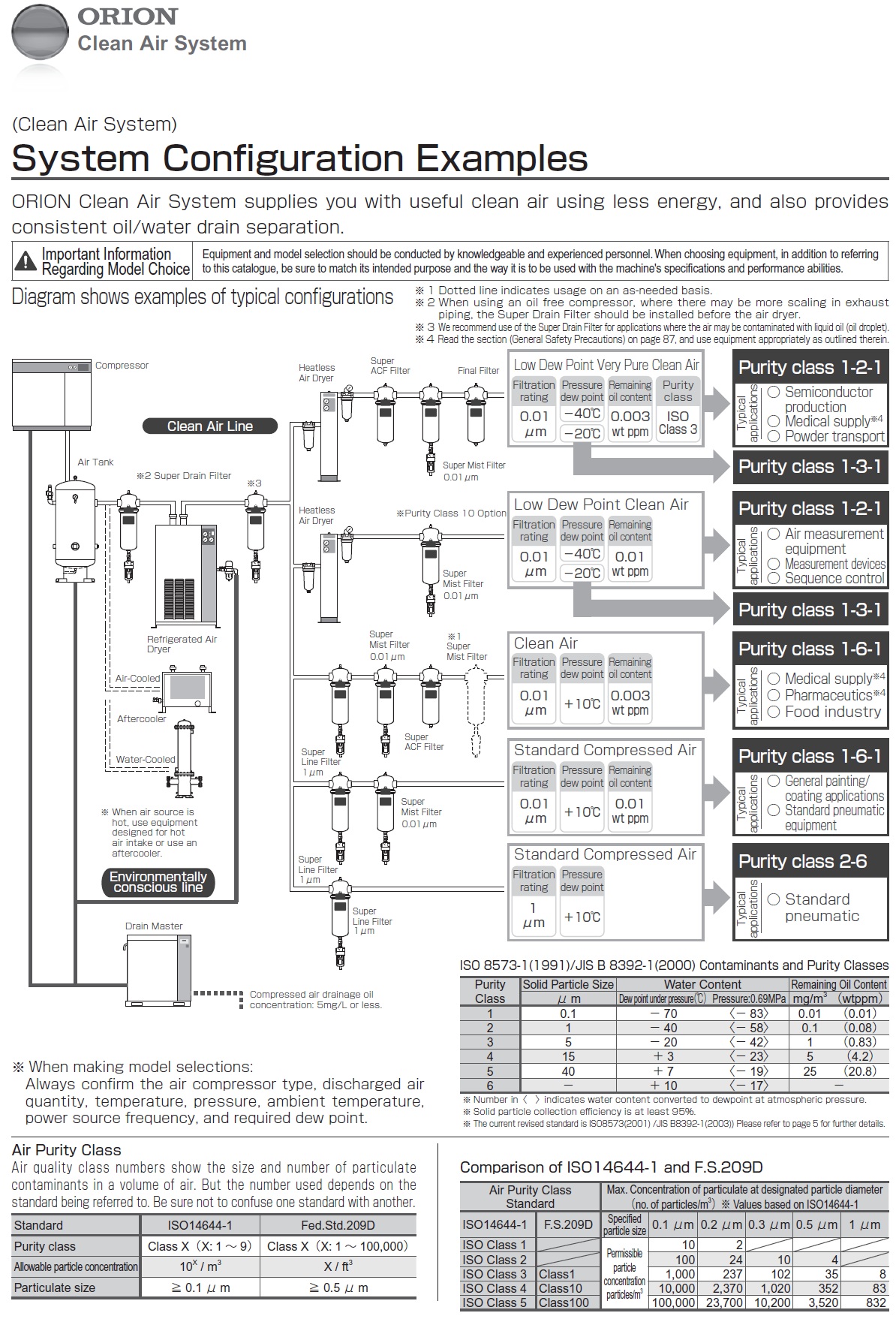

  • System Configuration Examples
  • Catalog Download
  • Manual Download

  • Specifications

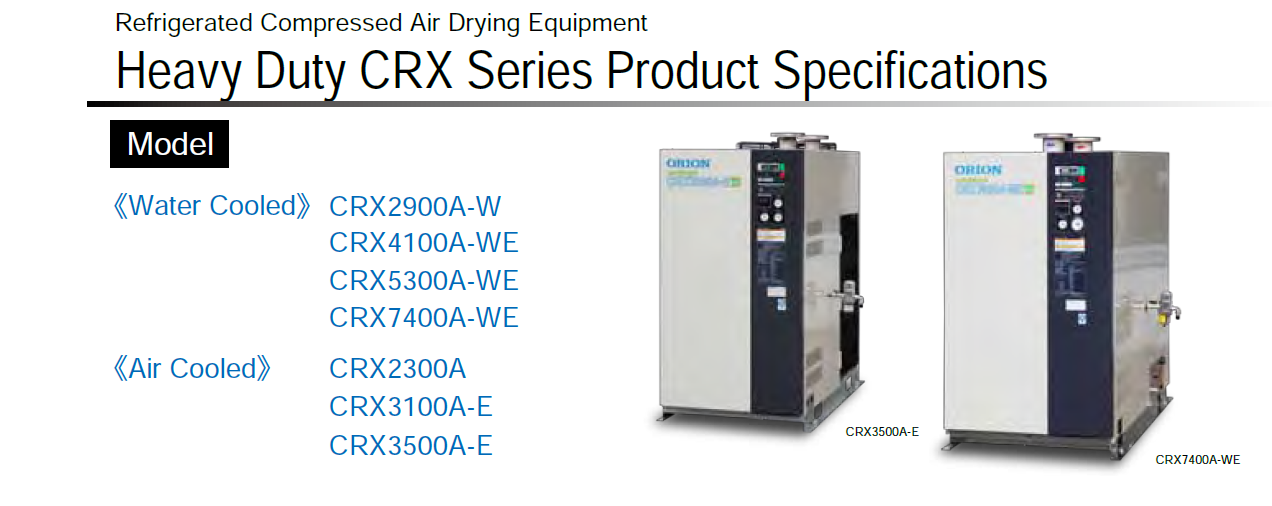

    Model Water cooled
    CRX2900A-W CRX4100A-WE CRX5300A-WE CRX7400A-WE
    Air Processing
    Conditions
    Air Processing Capacity ? /min 29 41 53 74
    Inlet air pressure MPa 0.69
    Inlet air temperature 45
    Outlet pressure dew point 10
    Cooling water temperature 32
    Cooling water flow rate ? /h 4.8 5.2 5.4 9.0
    Ambient temperature
    Operating ranges Inlet air temperature 10 ? 60
    Ambient temperature 2? 45
    Compressed air pressure MPa 0.29 ? 0.98
    Cooling water temperature 2? 34
    Cooling water pressure MPa 0.3 ? 0.7
    Outside Dimensions(H × D × W) mm 1000×802×1500 1000×802×1500 1199×850×1500 1654×877×1620
    Mass kg 278 350 395 495
    Auto drain trap Model AD5(Disc operated)
    Drain outlet Rc?
    Air Connection(Flange) 2?B(65A) 3B(80A) 4B(100A)

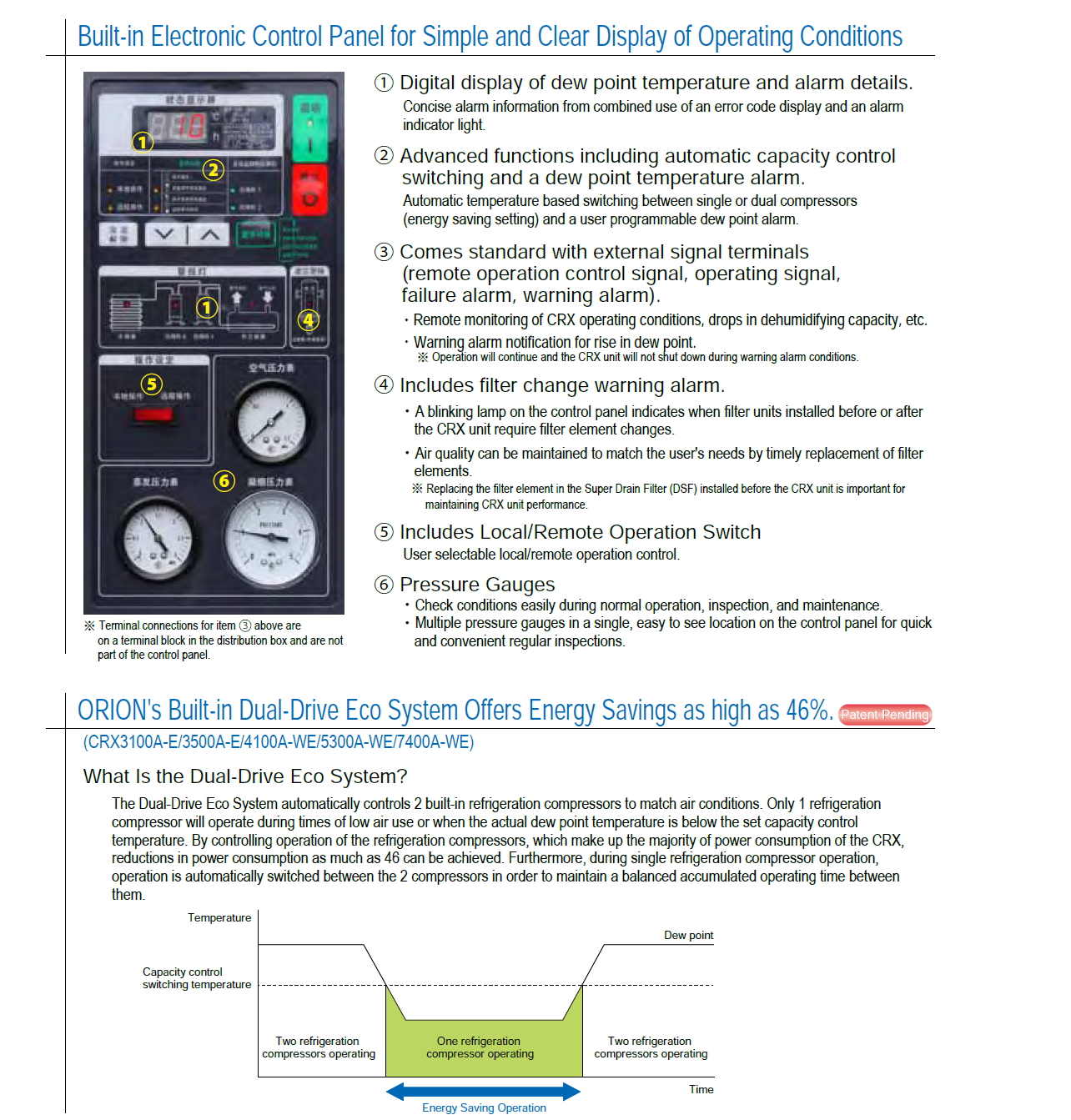

    Dual-Drive Capacity control function
    Energy saving effect during capacity control 46%
    Refrigerant R407C R410A
    Electrical
    Specifications
    Power V 3 phase 380V±10%
    Power consumption kW 4.2 6.8 9.5 12.5
    Electric current A 8.0 12.5 17.5 21.0
    Recommended Pre Filter(Installed before CRX) DSF2900A-SUS DSF4100A-SUS DSF5300A-SUS DSF6100A-SUS, DSF8000A-SUS

    Model Air cooled
    CRX2300A CRX3100A-E CRX3500A-E CRX4500A-E
    Air Processing Air Processing Capacity ? /min 23 31 35 45
    Conditions Inlet air pressure MPa 0.69
    Inlet air temperature 50
    Outlet pressure dew point 10
    Cooling water temperature
    Cooling water flow rate ? /h
    Ambient temperature 35
    Operating ranges Inlet air temperature 10 ? 60
    Ambient temperature 2? 45
    Compressed air pressure MPa 0.29 ? 0.98
    Cooling water temperature
    Cooling water pressure MPa
    Outside Dimensions(H × D × W) mm 1500×802×1500 1996×850×1500
    Mass kg 323 385 380 465
    Auto drain trap Model AD5(Disc operated)
    Drain outlet Rc?
    Air Connection(Flange) 2?B(65A) 3B(80A) 3B(80A) 4B(100A)
    Dual-Drive Capacity control function
    Energy saving effect during capacity control 46%
    Refrigerant R407C
    Electrical Power V 3 phase 380V±10%
    Specifications Power consumption kW 5.6 10 10 17
    Electric current A 10.5 18 18 22
    Recommended Pre Filter(Installed before CRX) DSF2900A-SUS DSF3500A-SUS DSF5300A-SUS

    • 05 CRX Clean Air System(Heavy Duty Models)--EN.pdf
